スクリーン グー

壁面や天井、様々なオブジェクトへ、塗ってスクリーンを作ることができます。プロジェクションマッピングなどにも活躍します。

スクリーン グー 2.0

スクリーン グー 2.0 主な特長

スクリーン グー 2.0 は、グーシステムズ社が過去15年以上にわたって、投写スクリーン塗料を製造した経験と最新のポリマーおよび顔料の研究結果を掛け合わせることによって開発されました。
塗布する段階から、映像を楽しむ段階まで、スクリーングーが提供出来る価値のあらゆる側面を検証することから開発をスタートしました。

塗布やメンテナンスをより簡単にしたいという思いを実現しました。従前の製品であるスクリーングークラシックに比べて、以下の点において優れています。

  • カバー率を向上させました。
  • より少ない塗布回数で仕上げることができます。
  • タッチアップなどの補修を容易にします。

そして、映像品質の向上も実現しました。従前の製品と比べて、以下の点において優れています。

  • より平面性が高く、より滑らかな投写面を実現します。
  • より深く、より鮮やかな色を再現します。
  • ディテールや画像の鮮明さに優れています。

私たちは、これらの目標をすべて達成したと確信しており、自信を持ってスクリーングー2.0をご提供します。

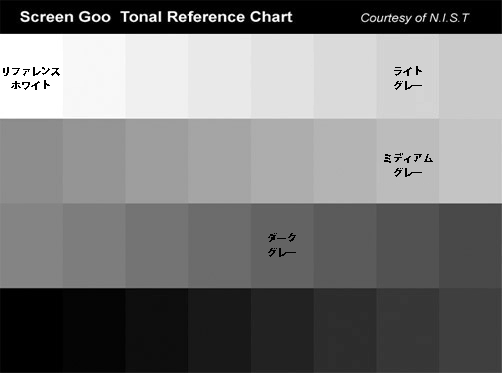

スクリーングー2.0は、様々な環境光や投影技術に対応するために、下記のグレースケール表に対応する4種類の色調を用意しております。

塗布面積早見表
容量 ローラー スプレー
平方メートル 画面サイズ(16:10) 平方メートル 画面サイズ(16:10)
500mL 2.8 約90型 2.25 約80型
1000mL 5.6 約130型 4.5 約120型
2L 11.2 約190型 9 約170型
3.78L 21.2 約270型 17.1 約240型
16L 89.6 約550型 72 約490型

スクリーン グー 塗り方

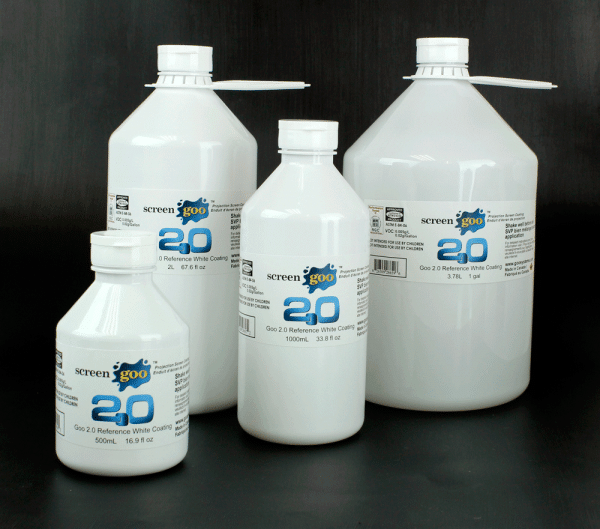

スクリーン グー 2.0 商品ラインナップ

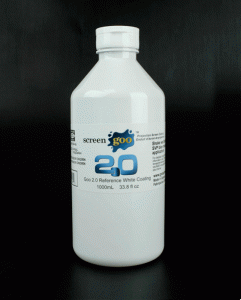

スクリーン グー 2.0
リファレンスホワイト 1.0
100% ホワイト

完全な照明制御が可能な部屋に
最適です。

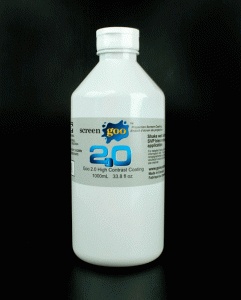

スクリーン グー 2.0
ハイコントラスト 0.85
ライトグレー (85% ホワイト)

周囲の明るさが中程度の部屋に
最適です。

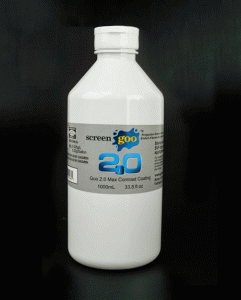

スクリーン グー 2.0
マックスコントラスト 0.70
ミディアムグレー (70% ホワイト)

周囲の光量が多い部屋に
最適です。

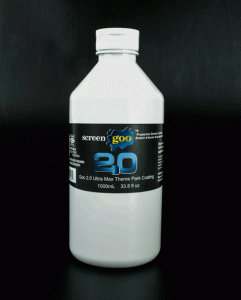

スクリーン グー 2.0
ウルトラマックスコントラスト 0.40
テーマパークコーティング
ダークグレー (40% ホワイト)

非常に高い環境光レベルの部屋に
最適です。

※ロゴ、データチャート、製品写真、およびギャラリー画像はグーシステムズグローバルディストリビューションにより提供されております。
※The logo of Screen Goo, products’ data, and images of products and gallery by courtesy of Goo Systems Global Distribution

スクリーン グー 2.0 導入例

Theme Parks

1,600 square meters of Screen Goo High Contrast coatings at Saudi Arabia's Shanghai Expo Pavilion Screen Goo High Contrast Coated Immersive Virtual Reality Ride at Sensorama, Brazil Screen Goo Ultra Silver 3D at World’s Largest 3D Universal Studios' King Kong Attraction Ultra Silver 3D and Ultra Max Contrast coatings at Transformers ride at Universal Studios potter gringotts Ferrari World Theme Park
Large Curved Screen Goo Screen at Maritime Experiential Museum at Resorts World, Sentosa Island, Singapore Screen Goo Reference White +20 Shines at Wanda Movie Park in Wuhan, China Chimelong Ocean Kingdom Uses Screen Goo for Sea, Forest, Volcano, Life-like Projection High Contrast Screen Goo coatings dress up River Safari Park in Singapore Screen Goo High Contrast coated Circular screen at Hainan Sanya Buddhist Cultural Theme Park Screen Goo High Contrast Coated Immersive Virtual Reality Ride at Sensorama, Brazil

Concerts & Entertainment

Out-of-this-world 3D Projection Mapping Project Using Screen Goo with Avicii LE7VELS 2012 Tour Steely-HiRes1 Rabbit Hole Creative Projection Mapping Technology Using Screen Goo for Staging of MUTEMATH Odd Soul Tour Criss Angel georgia Historic Capitol Theater in Port Chester, New York Creates Immersive Concert Environment
Out-of-this-world 3D Projection Mapping Project Using Screen Goo with Avicii LE7VELS 2012 Tour e3-expo Screen Goo High Contrast and Rear Projection coatings create Cool Room at the NEC Showcase in London rockandroll Videofilm Systems and Screen Goo Rear Projection coatings Provide Backdrop for Major Saudi Pageant Screen Goo High Contrast screen at Mendocino Film Festival

Projection Mapping

ThroughTheEchoes-Screen Goo Rear Projection coatings sprayed onto 12,344 square foot pyramid surface, under projection NFL Owners 2019 Projection Mapping
Les Mills Immersive Fitness edge-blended curved screens using Screen Goo Max Contrast projection coatings Screen Goo’s Excellence Reflected in Ha Long Vietnam Landmark Screen Goo High Contrast +20 Premium Coating at Virgin Gym in Singapore
580 square meters of High Contrast Screen Goo screens at Haidilao International restaurants in China Scottish Submarine Centre

Commercial Applications

marbodal Screen Goo HIgh Contrast Coatings at Singapore Telecom's Movement & Gesture Recognition Screen Goo High Contrast at various open rooftop locations around the world Latitude 30 Entertainment Center Dresses Up with 120 foot wide Panoramic Screen Singapore’s Bukit Panjang Public Library-2 Screen Goo High Contrast coating at Audio One Edge Blending Screen at Fairview Mall in Toronto, ON, Canada
One of Gary Li's Screen Goo projection marvels from Hong Kong and China Screen Goo is the Projection Screen of Choice for Burj Khalifa, the World's Tallest Building in Dubai, United Arab Emirates Screen Goo High Contrast projection coatings - Thai Pavilion at World Expo 2020 in Dubai UAE 4-way Screen Goo High Contrast Projection System for Siam Cement Group Singapore’s Mass Rapid Transit System’s Rail Discovery Centre (RDC) 3 Screen Goo Max Contrast at Dreamworks City of Dreams Hotel and Casino in Manila
Dewsbury Sports Centre Makes Working Out a Pleasure with Screen Goo Screen Goo at PISGA Center at Ramat Gan Smart City in Israel Screen Goo Compliments the Elegance of Singapore's Ritz Carlton Millenia Screen Goo High Contrast Flexibility and Versatility for 3M Innovation Center, Singapore Before and After Screen Goo at Sunsuria City Show Gallery Kuala Lumpur, Malaysia 2 in 1 Projection and Digital Annotating Surface Powered by Screen Goo
EON's ICube Baseball Simulating VR System Max Contrast Screen Goo at Cinepolis in Guadalajara and Monterrey, Mexico Major League Baseball's MLB Cafe Tokyo 360 degree, 800 inch wide Screen Goo Reference White Screen hardrockcollage Mulberry Condominium in Vietnam uses Screen Goo Reference White Panoramic Projection Screen Digital Gateway IT Shopping Center in Bangkok uses Screen Goo Max Contrast for Ceiling Curved Projection Screen
Screen Goo Reference White projection screens for Stigma Sports Bar in Ashqelon, Israel High Contrast Screen Goo screen at Cyberia in Bangkok, Thailand Ringers Sports Lounge, Austin Texas: "A Great View of the Action" Screen Goo at Buffalo Wild Wings Screen Goo High Contrast screen, powered by a BenQ Model TH680 projector provides soccer action at Heraclion
Screen Goo High Contrast Flexibility and Versatility for 3M Innovation Center, Singapore 580 square meters of High Contrast Screen Goo screens at Haidilao International restaurants in China Screen Goo Max Contrast at new 21-floor Adidas Asia Regional Headquarters in Shanghai, China Large Screen Goo Projection Screen at ASOS expanded and redecorated headquarters at Camden Town, UK vancouver-aquarium Duty-Free Shops Use Screen Goo For Their Latest World-wide In-Store Decoration!

Museums

Installation view of Matthew Barney: Redoubt at Hayward Gallery, 2021. © Matthew Barney 2021. Photo: Mark Blower Angry Birds Interactive Attraction at London’s Madam Tussauds Museum Screen Goo Max Contrast at Sports Run Interactive Exhibit at Perot Museum of Nature and Science Columbus earth theater & 3D National Geographic Theater Screen Goo Provides Pictures Beyond Perfection for Anri Sala's No Names, No Title Exhibition at the Tel Aviv Museum of Art Screen Goo High Contrast coating at Singapore City Gallery
Screen Goo High Contrast Surfaces at the National Museum of Singapore’s History Gallery Screen Goo Max Contrast at Lee Kong Chian Natural History Museum Reference White Screen Goo screens at Mahatma Gandhi Dandi-Kutir Museum indianheritage1-800 Screen Goo screen straight on the Wall at Museum in Australia Screen Goo Rear Projection at Chanel Exhibition at Metropolitan Museum of Art in New York
Reference White Screen Goo at Malay Heritage Centre Screen Goo High Contrast happy at Singapore Garden Festival Rear Projection Screen Goo at Nature Interpretive Centre, Taman Wetlands, Malaysia Museum of Moving Image in New York Uses Screen Goo for Large Screens taipeiflora2 Exterior view. Photo credit: Museum of Contemporary Canadian Art
Reference White Screen Goo at Pixar's "20 Years of Animation" Celebration Exhibit at Taipei Fine Arts Museum germanwatch Screen Goo panoramic screen at Chicago's reknown Field Museum "Native Land, Stop Eject" Presentation at World Climate Conference in Copenhagen Screen Goo Reference White at Human Evolution Panorama at Science City in Kolkata, India Screen Goo awarded coveted "Museum Creative Display Award" of the year by the Museums and Relevant Products and Technologies Exposition
Milagre Do Sol Museum in Portugal Uses Ultra Silver 3D Screen Goo Fábrica do Chocolate Museum in Portugal Uses Screen Goo Ultra Silver 3D Sintra Mitos e Lendas Museum, Portugal The National Civil Rights Museum in Memphis Tennessee Birthday or Country Music Museum in Bristol, VA ENVision Gallery Promotes Green Living and Taking Care of our Environment

Simulators

Surround View Flight Simulators Use Screen Goo Max Contrast for Super-Realistic Wide Field-of-View Experience Titan 6K uses Screen Goo Rear Projection coatings for immersive flight simulator Screen Goo Max Contrast used by Pictures That Move to Create Los Angeles 2024 Interactive Experience Airbus A-320 flight simulator using Screen Goo High Contrast by Aircraft Simulation Technology Hong-Kong Harbour Marine Simulator
Screen Goo HIgh Contrast coating at Pacific Maritime Institute State of the Art Ship Simulation Titan 6K uses Screen Goo Rear Projection coatings for immersive flight simulator EON's ICube Baseball Simulating VR System Motek Medical Uses Screen Goo with Medical Imaging and Training Simulators Kennedy Space Center - Visitor Complex - Space Shuttle Experience Screen Goo Rear Projection at Flight Simulator Enthusiast John Shepherd's basement
Medical Imaging and Training Simulators at Walter Reed Hospitals Exterior view. Photo credit: Museum of Contemporary Canadian Art Surround View Flight Simulators Use Screen Goo Max Contrast for Super-Realistic Wide Field-of-View Experience Cockpit view of flight simulator using Screen Goo High Contrast projection coating in Eastern Europe Surround View Flight Simulators Use Screen Goo Max Contrast for Super-Realistic Wide Field-of-View Experience Screen Goo High Contrast with DIH's Motek CAREN High-End device

Houses of Worship

Final tests to adjust projection parameters at 7 meter x 5 meter Screen Goo High Contrast screen at Shine Auditorium, New Creation Church, Singapore Screen Goo Max Contrast screens painted staight to the wall at First United Presbyterian Church - De Pere Wisconsin Beltline Church of Christ in Decatur, Alabama Reference White Curve Goo Screen at Buddhadasa Indapanno Archives - Thailand Reference White Screen Goo at Malay Heritage Centre Lif Sanctuary Church Screen Goo screen in Singapore
Screen Goo Basic White at St. Andrews Cathedral in Singapore

Educational

2 in 1 Projection and Digital Annotating Surface Powered by Screen Goo Screen Goo Max Contrast in high ambient light conditions at Grant McEwan College in Edmonton, Alberta, Canada Screen Goo High Contrast coated screen at Cortland College in Upstate New York Large Screen Goo Screens at Hong Kong City University Media Enhanced Room at University of California-Irvine uses Reference White Screen Goo for their Environment Institute Screen Goo Ultra Silver 3D screens at Florida State University
Screen Goo Reference White coating at Singapore Institute of Technology (SIT) @ Nanyang Polytechnic frontrearprojection600 Screen Goo Ultra Silver 3D screens at Florida State University Oh yeah.............. Screen Goo Rear Projection at New York's Albany University - powered by 2000 lumen XGA projector! AFTER Screen Goo Multi-Purpose Projection & Dry-Erase Surface at Black Hills Energy

Home Theaters

Showtime!!! Gianni's Home Theater in Athens, Greece "The picture is extremely crisp and detailed. Shadow detail and skin tones are the best I have ever seen on any display" Discriminating Home Theater owner in Singapore uses Screen Goo High Contrast +20 premium coating UK home theatre 2
Casey Sponenburgh's 2nd Home Theater with the lights on. Home Theater Showroom at Just HiFi, Kingston, Ontario, Canada Screen Goo straight on the wall at a home theater somewhere in Paris, France - C'est Magnifique! UK home theatre 3 138 inch diagonal Screen Goo Fixed Screen in Thai Home Theater The best word to describe the quality of the Goo is "sensational"
I am definitely going to recommend Goo Systems to all of my friends! Dan Hozhabri Uses Screen Goo To Friends' Amazement! Rolonde Marchand "We Love Our Screen and Have Already Recommended This Product to Friends"

Rear Projection

Screen Goo Rear Projection coatings sprayed onto 360 degree interactive tunnel at ISE-2019 Epson Vortex display Antycip Immersive Virtual Reality Simulation Environment Using Screen Goo Rear Projection Coatings Screen Goo Rear Projection coatings help give a face, any face, to Furhat's highly intelligent social robot Miniaward Screen Goo Rear Projection creates "Magic Trees" at Disney Stores worldwide Steely-HiRes1
Screen Goo Rear Projection at Flight Simulator Enthusiast John Shepherd's basement Screen Goo panoramic screen at Chicago's reknown Field Museum Screen Goo Rear Projection coating sprayed on plexiglas at ISE show in Amsterdam germanwatch Cary Grand on Screen Goo Rear Projection screen Screen Goo Rear Projection at New York's Albany University - powered by 2000 lumen XGA projector!
Screen Goo Rear Projection dome at History Channel Screen Goo Rear Projection at Chanel Exhibition at Metropolitan Museum of Art in New York BMW Launches Series 5 with Screen Goo Rear Projection Screen Goo Rear Projection coating with Globe 4D Fully Interactive and Immersive 4D Globe Cadillac Dealership in Beijing uses Screen Goo Rear Projection Coating in Showroom Screen Goo projected "Virtual Acquarium" at Seahorse Bar at Caesar's Palace in Las Vegas
Rear Projection Coated Plexiglas Domes at US Exhibition Rear Projection Screen Goo at Nature Interpretive Centre, Taman Wetlands, Malaysia Screen Goo Rear Projection coating sprayed from inside 2 meter hemisphere One of Gary Li's Screen Goo projection marvels from Hong Kong and China

Misc

korea-design-house 10 foot wide compound curved, torus section shaped screen coated with Screen Goo 2.0 Max Contrast at !AAPA 2018 Screen Goo Depth of Field at its best! Museum in Japan. Screen Goo coated Earth Ball with projection Screen Goo in Bar in Moscow, Russia Screen Goo screen in Cafeteria in Athens, Greece
Through Mr. Aung of PEACE MYANMAR Electric Co., Anne Chiang of Goo Central briefs Burmese application contractors on the finer points of spraying on GOO on site in the exhibition hall. Room at Hotel Bonita in Japan Screen Goo Reference White at CANON's Test Lab dvd 2006-27-11_ldiw Screen Goo Coated Half Dome at History Channel
gootoob5800 Tokyo Sky Tree, a new landmark in Tokyo Japan is using a number of Screen Goo screens Screen Goo Shows at Infocomm Beijing 2011
